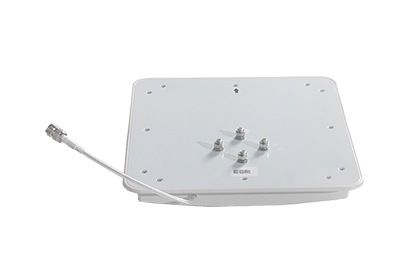

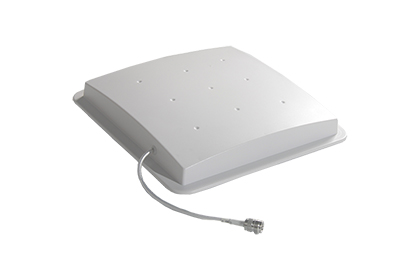

8dBi Antenna ZK-ANT255D
Descriptions
902-928MHz/865-868MHZ
8dBi
Circular Polarization
255*255*45mm
Applications
RFID logistics tracking
Warehouse management
Door control system
Man management system
Specifications:
|
Model |
ZK-ANT255d |
|
Frequency range* |
902-928 MHz /865-868MHz |
|
Bandwidth |
26MHz |
|
Gain |
8dBi |
|
Beam Width |
60° |
|
V.S.W.R |
≤1.4 |
|
Max power |
100W |
|
Nominal Impedance |
50 Ω |
|
Porlarization |
HCP |
|
Connector |
SMA or N-Female |
|
Cover for antenna |
ABS |
|
Installation pole |
φ40-50MM |
|
Antenna Size |
255×255×45mm |
|
Max wing velocity |
60 m/s |
|
Weight |
1 kg |
|
temperature |
-40℃～+70℃ |
|
Frequency range |
865-868 MHz |
|
Bandwidth |
26MHz |
|
Gain |
8dBi |
|
Beam Width |
60° |
|
V.S.W.R |
≤1.4 |
|
Max power |
100W |
|
Nominal Impedance |
50 Ω |
|
Polarization |
HCP |
|
Connector |
N female |
|
Cover for antenna |
ABS |
|
Antenna Size |
255×255×45mm |
|
Max wing velocity |
60 m/s |
|
Weight |
0.9kg kg |
|
temperature |
-40℃～+70℃ |
*other frequency range is optional.
