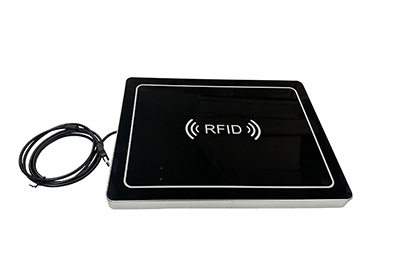

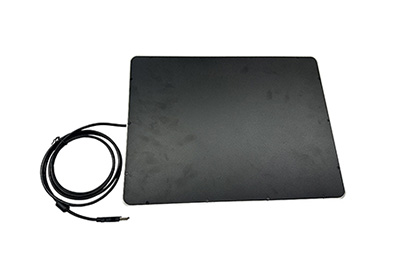

ZK-RFID108USB
ZK-RFID108 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems. such as Library, logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
l Self-intellectual property;
l Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;
l 902~928MHz or 865-868MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l Built-in 4dbi antenna with effect reading distance up to 200cm*;
l Support auto-running and interactive work mode;
l Low power dissipation with single +9V DC power supply;
l Support RS232, RS485, Wiegand26/34, TCP/IP and USB Interface;
l Output format and parameters configurable;
l Provide SDK and demo software to facilitate further development.
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
15 |
V |
|
Operating Temp. |
TOPR |
-20~+60 |
℃ |
|
Storage Temp. |
TSTR |
-25~+70 |
℃ |
l Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
6 |
9 |
12 |
V |
|
Current Dissipation |
IC |
|
350 |
650 |
mA |
|
Frequency |
FREQ |
902 |
|
928 |
MHz |
|
Effective Distance* |
Dis |
0 |
200 |
300 |
cm |
* Effective distance depends on protocol, tag and environment.
