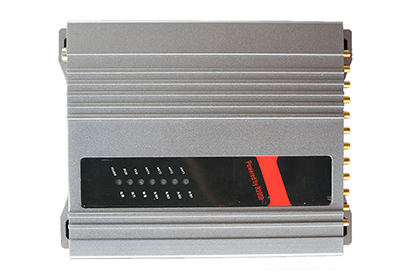

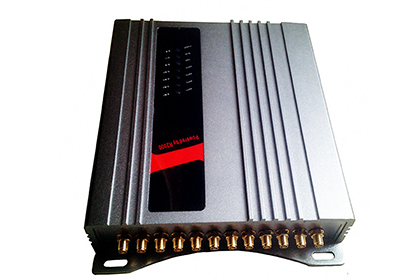

12port Fixed Reader ZK-RFID1201
ZK_RFID1201 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
l Self-intellectual property;
l Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
l 902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 12 SMA antenna port with antenna auto-tuning and failure-detection;
l Support auto-running, answer, trigger and real-time-inventory work mode;
l Tag buffer size up to 800PCS (Max. 496bits EPC length);
l Support EPC and TID inventory;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, TCPIP with POE optional;
l High reliability design;
l Support on-the-site firmware upgrading.
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
16 |
V |
|
Operating Temp. |
TOPR |
-10~+60 |
℃ |
|
Storage Temp. |
TSTR |
-20~+75 |
℃ |
l Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
8 |
9 |
12 |
V |
|
Current Dissipation |
IC |
|
800 |
1500 |
mA |
|
Frequency |
FREQ |
902 |
902~928 |
928 |
MHz |
|
Size |
Size |
|
227×170×40 |
|
mm |

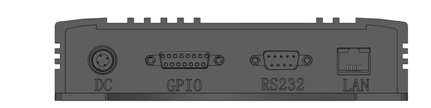

INTERFACE
1．Power (DC JACK)
|
No. |
Symbol |
Comment |
|
Central |
PWR |
+9VDC |
|
Outer |
GND |
Ground |
2．GPIO （DB15 Female）
|
No. |
Symbol |
Comment |
|
1 |
Output1 |
General output1 |
|
2 |
Output2 |
General output2 |
|
3 |
Output3 |
General output3 |
|
4 |
Output4 |
General output4 |
|
5 |
Input1 |
General Intput1 with Internal 47k resistor pulled-down to ground |
|
6 |
Input2 |
General Intput2 with Internal 47k resistor pulled-down to ground |
|
7 |
Input3 |
General Intput3 with Internal 47k resistor pulled-down to ground |
|
8 |
Input4 |
General Intput4 with Internal 47k resistor pulled-down to ground |
|
9 |
TGIN |
Trigger input with internal 10k resistor pulled-up to +5V |
|
10 |
R+ |
R+ in RS485 |
|
11 |
R- |
R- in RS485 |
|
12 |
GND |
Ground |
|
13 |
NC |
Normal-Close terminal of internal relay |
|
14 |
NO |
Normal-Open terminal of internal relay |
|
15 |
CM |
Common terminal of internal relay |
3. UART （RS232 DB9 Female）
|
No. |
Symbol |
Comment |
|
1 |
NC |
Reserved |
|
2 |
TXD |
Data output in RS232 |
|
3 |
RXD |
Data input in RS232 |
|
4 |
NC |
Reserved |
|
5 |
GND |
Ground |
|
6 |
NC |
Reserved |
|
7 |
NC |
Reserved |
|
8 |
NC |
Reserved |
|
9 |
NC |
Reserved |
．TCPIP network (RJ45)

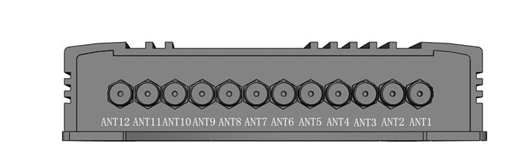

5．TNC antenna port ANT1~ANT4

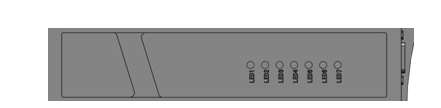

6．LED indicator LED1~LED7
|
No. |
Symbol |
Comment |
|
1 |
LED1 |
Antenna 1-4 active indicator |
|
2 |
LED2 |
Antenna 5-8 active indicator |
|
3 |
LED3 |
Antenna 9-12 active indicator |
|
4 |
LED4 |
Reserved |
|
5 |
LED5 |
Tag-detected indicator |
|
6 |
LED6 |
Command-executing indicator |
|
7 |
LED7 |
Power-on indicator |
