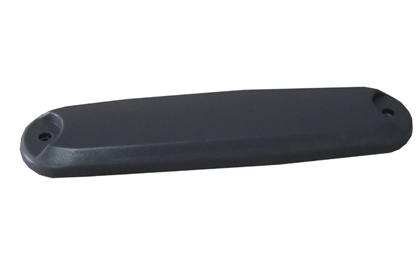

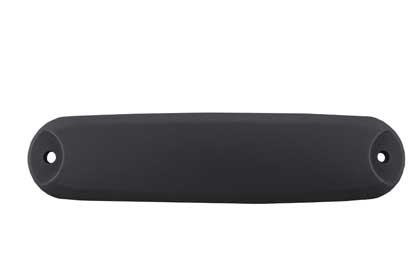

UHF metal tag ZK-TAG10324
This tag is designed on wave-absorbing material. It solves the problem that tags can not be attached to metal surface（Reading distance even will be father when it is attached to metal surface）. At the same time, it can work outside in the hard environment. It complaints with EPC C1G2 (ISO18000-6C), operating frequency is 902～928MHz (It can be used worldwide). Each tag has a unique ID and stores user data. It is mainly designed for goods shelves management, IT management, etc.
Product Model: ZK-ABS10324
Material: PC
Dimensions: 103×24×6.8mm/117 x 32x 7.6mm
Color: optional
Working Temperature: -40℃～60℃
RFID Features:
Protocol: EPC C1G2 (ISO18000-6C)
Frequency: 902～928MHz
Chip: Alien Higgs 3 (optional)
EPC Memory: 96 bits, maximum 480 bits
User Memory: 512 bits
Read Range: 7--8m
Other Features:
Environmental: ROHS compliant
Data storage: >10 years
Re-write: 100,000 times
Fixture: 3M adhesive or rivet
Customization: Company logo print
Application: Assets statistics management, IT management, goods shelves management, small equipment management, etc.
