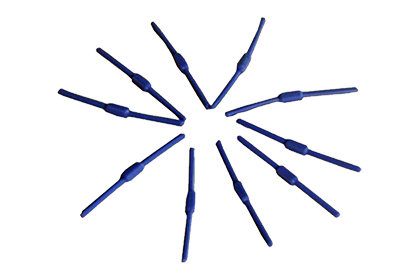

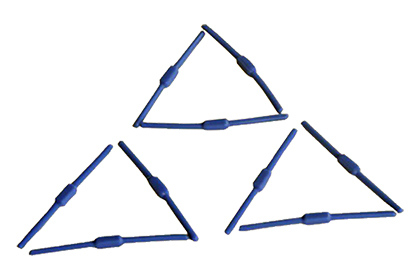

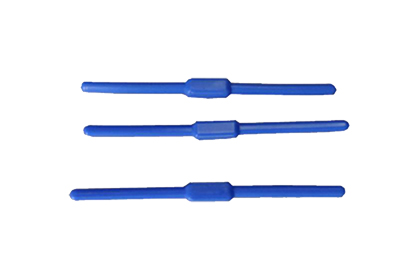

Flexible Spring Laundry Tag ZK-TAG8804

This tag is designed based on spring and silicone base material, small size, great reading rate and perfect reading distance reaching 6 meters.

Also it is with water-proof, flexible and high washing cycle ability.

Up to 225 wash or dry cleaning cycles for use in any RFID hotel, spa, retirement home, sports club laundry and linen management application.


RFID Standard       ISO/IEC 18000-6 TypeC (EPC Gen2)


Size & Weight       88(W)x4.0(D)x4.0(H)mm, 1.85 g


Chip Type       Alien Higgs-3


EPC Memory  96 bits to 480 bits


User Memory  512 bits


Reading Range       902-928 MHz 3.0-7.0m  By RCRD-6887 Reader


       866-868 MHz 3.0-6.0m  By RCRD-6887 Reader


Tagging   Sewing, Insert.


Estimated Lifetime 225 washing cycles or 3 years, whichever comes first


Environmental Resistance      Washing Method    Laundry, Dry cleaning


Water Extraction Pressure     60 bar


Water Resistance    Water resistant


Chemical Resistance      Detergent, Softener, Bleach (Oxygen/ Chlorine), Alkali


Heat Sterilization   125 ºC for 15-20 minutes - 150 cycles


Heat Resistance      Drying    85°C  (Up to 60min.)


120°C (Up to 30 min.)


Ironing    230°C (Up to 60 sec. with press cloth)


Humidity/ Temperature  Operating       -20 to 50°C, 10 to 95%RH


Storage   -40 to 55°C, 8 to 95%RH
