Single channel splitter ZK-RFID107T

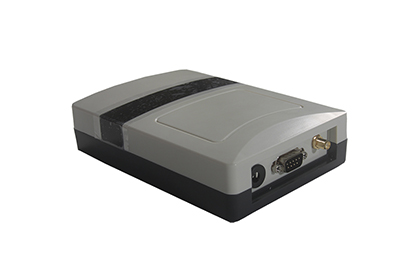

ZK-RFID107T is a high performance Multiple Protocol UHF Single channel splitter RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
Self-intellectual property;
l Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;
l 902~928MHz or 865-868MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l Built-in 2dbi antenna with effect distance up to 300mm*;
l Support auto-running and interactive work mode;
l Low power dissipation with single +9V DC power supply;
l SupportRS232, Wiegand26/34, USB, TCP/IP and Wifi interface;
l Output format and parameters configurable;
l Provide SDK and demo software to facilitate further
development.
INTERFACE
|
DB9 Male |
||
|
Pin |
Symbol |
Comment |
|
1 |
NC |
Reserved |
|
2 |
TXD |
TXD of RS232 |
|
3 |
RXD |
RXD of RS232 |
|
4 |
NC |
Reserved |
|
5 |
GND |
GND |
|
6 |
WD0 |
Wiegand data0 |
|
7 |
NC |
Reserved |
|
8 |
WD1 |
Wiegand data1 |
|
9 |
GND |
GND |
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
15 |
V |
|
Operating Temp. |
TOPR |
-10~+60 |
℃ |
|
Storage Temp. |
TSTR |
-25~+80 |
℃ |
l Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
6 |
9 |
12 |
V |
|
Current Dissipation |
IC |
|
400 |
700 |
mA |
|
Frequency |
FREQ |
902 |
|
928 |
MHz |
|
Effective Distance* |
Dis |
0 |
200 |
300 |
mm |
* Effective distance depends on protocol, tag and environment.
