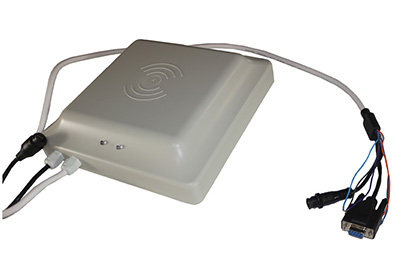

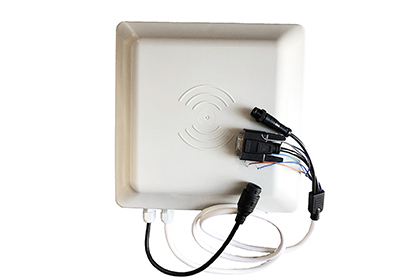

Mid-range TCP Reader ZK-RFID101IP
ZK_RFID101IP is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
l 902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 8dbi antenna optional with effect distance up to 5m*;
l Support auto-running, interactive and trigger-activating work mode;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, Wiegand interface;
* Effective distance depends on antenna, tag and environment.
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
16 |
V |
|
Operating Temp. |
TOPR |
-10~+55 |
℃ |
|
Storage Temp. |
TSTR |
-20~+75 |
℃ |
l Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
8 |
9 |
12 |
V |
|
Current Dissipation |
IC |
|
350 |
650 |
mA |
|
Frequency |
FREQ |
902 |
|
928 |
MHz |
Interface
|
Item |
Comment |
|
Red |
+9V |
|
Black |
GND |
|
L-Blue |
Wiegand DATA0 |
|
Blue |
Wiegand DATA1 |
|
Purple |
RS485 R+ |
|
Orange |
RS485 R- |
|
Brown |
GND |
|
White |
RS232 RXD |
|
pink |
RS232 TXD |
|
Gray |
Trigger input（TTL level） |
* Optional model named as ZK_RFID101/2TCP with TCP/IP interface is also available.
