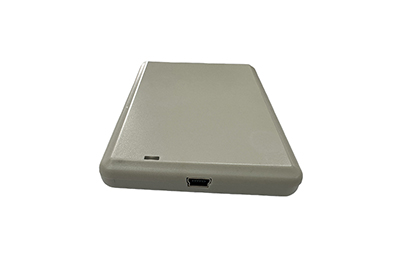

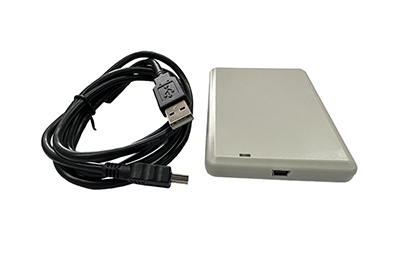

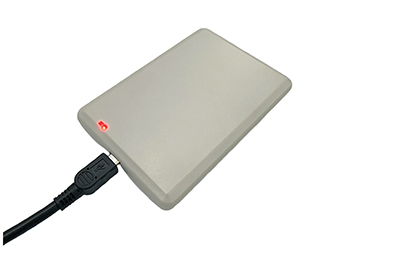

New ZK-RFID105A
ZK-RFID105A is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Support UHF EPC Gen2(ISO18000-6C) protocol tags;
l Advanced tag processing algorithm, high identification rate;
l Built-in antenna with effective distance up to 50cm;
l Low power dissipation design;
l USB interface to get power from computer
l Provide DLL and Demonstration Software
Source code to facilitate further development;
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
6 |
V |
|
Operating Temp. |
TOPR |
-20~+60 |
℃ |
|
Storage Temp. |
TSTR |
-25~+70 |
℃ |
l Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+5V unless specified
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
3.3 |
5 |
5.5 |
V |
|
Current Dissipation |
IC |
|
90 |
150 |
mA |
|
Frequency |
FREQ |
902 |
|
928 |
MHz |
|
Effective Distance* |
Dis |
0 |
100 |
150 |
mm |
* Effective distance depends on protocol, tag and environment
