Product
Properties:

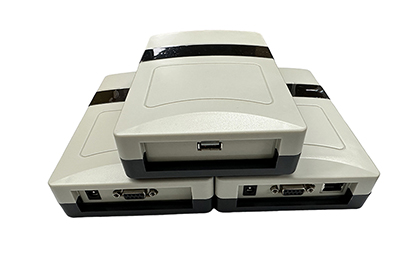

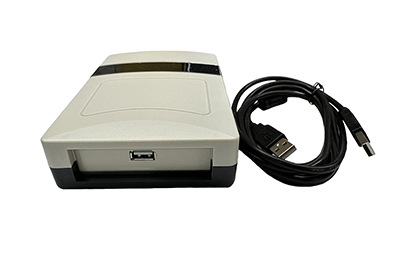

New ZK-RFID107A/USB

ZK-RFID107A-USB is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system

Features:

FEATURES

l Self-intellectual property;

l Support UHF EPC Gen2(ISO18000-6C) protocol tags;

l Advanced tag processing algorithm, high identification rate;

l Built-in antenna with Read effective distance up to 1000mm;

l Low power dissipation design;

l USB interface to get power from computer

l Provide DLL and Demonstration Software Source code to facilitate further development;

CHARACTERISTICS

l Absolute Maximum Rating

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

5

V

Operating Temp.

TOPR

-15~+55

Storage Temp.

TSTR

-20~+60

l Electrical and Mechanical Specification

Under TA=25℃,VCC=+5V unless specified

ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

3.3

5

5.5

V

Current Dissipation

IC

90

150

mA

Frequency

FREQ

902

928

MHz

Effective Distance*

Dis

0

1000

1200

mm

* Effective distance depends on protocol, tag and environment
